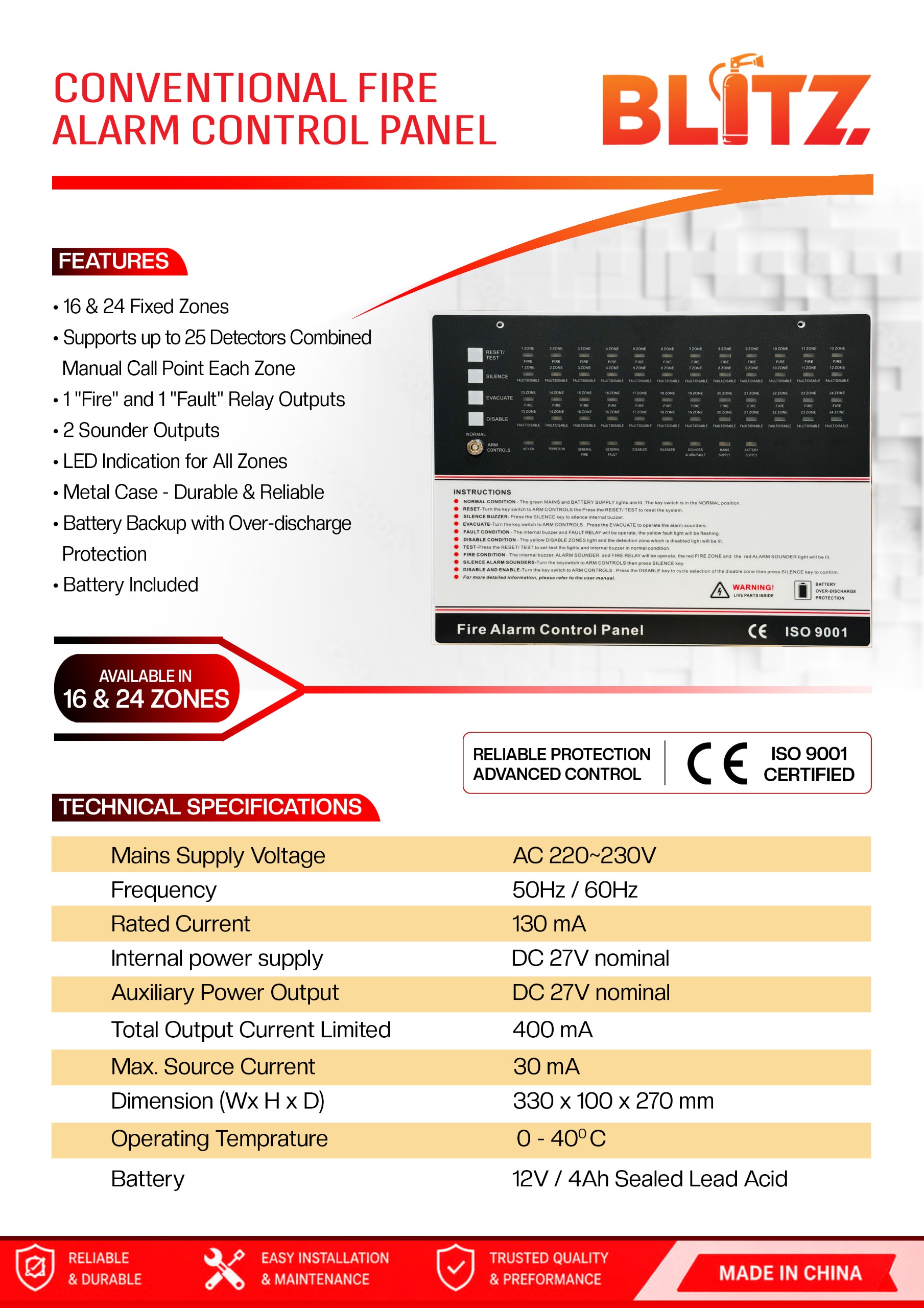

Blitz Conventional Fire Alarm Control Panel.

Key Features

• Zones: Available in 16 and 24 fixed zones.
• Capacity: Supports up to 25 detectors combined with manual call points per zone.
• Outputs: Features 1 "Fire" and 1 "Fault" relay output, along with 2 sounder outputs.
• Build & Power: Housed in a durable metal case, includes over-discharge battery protection, and comes with the battery included.

Technical Specifications

• Power Supply: Operates on AC 220~230V (50Hz / 60Hz) mains supply voltage.
• Internal Power: DC 27V nominal.
• Total Output Current Limited: 400 mA.
• Dimensions: 330 mm x 100 mm x 270 mm (W x H x D).
• Operating Temperature: 0 – 40°C.
• Battery Type: 12V / 4Ah Sealed Lead Acid.

Certifications & Origin

• Certifications: CE and ISO 9001 Certified.
• Manufacturing: Made in China.
